LED Backlight
With an energy-saving LED backlight, the FlexScan S1503-A uses only 5 watts during typical operation. The LED backlight does not contain any mercury for minimal environmental impact when the monitor is eventually disposed of.
Optimized Brightness with Auto EcoView
The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.
Built to Last Five Years
EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1503-A is higher than another 15-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
Digital and Analog Inputs
With both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.
Preset Modes for Optimum Viewing
Choose from several preset modes for the various applications you work with.

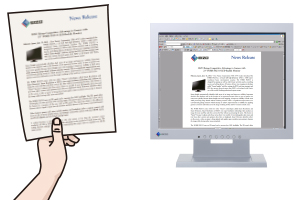

Closely Simulates Documents and Books
With office and home spending increasing amounts of time viewing documents and books on their monitors rather than in printed form, Paper mode simulates the look of paper. Paper mode makes reading documents and ebooks more comfortable and thereby reduces eyestrain.
Built-In Speakers
0.5-watt speakers are tucked away at the back of the monitor and out of view so you can enjoy sound while bezel size is kept to a minimum.
Anti-Glare Treatment
A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to view. Furthermore, the surface of the bezels is treated to prevent light reflection.
Flicker Prevention
A modulated light adjustment function prevents flicker at low brightness settings to reduce eye fatigue.
| Model Variations |
S1503-ATBK: With Tilt Stand, Black
S1503-ATGY: With Tilt Stand, Gray S1503-AFBK: Without Stand, Black S1503-AFGY: Without Stand, Gray Note: The Tilt Stand can be removed |
|---|---|
| Cabinet Color | Gray, Black |
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 15" / 38 cm |
| Native Resolution | 1024 x 768 (4:3 aspect ratio) |
| Viewable Image Size (H x V) | 304.1 x 228.1 mm |
| Pixel Pitch | 0.297 x 0.297 mm |
| Display Colors | 16.77 million from a palette of 1.06 billion |
| Viewing Angles (H / V, typical) | 160° / 160° |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 600:1 |
| Response Time (typical) | 8 ms (black-white-black) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DVI-D, D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 49 Hz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 49 kHz / 55 - 61 kHz |
| Sync Formats | Separate |
| Audio | |
| Speakers | 0.5 W + 0.5 W |
| Input Terminals | Stereo mini jack |
| Power | |
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 5 W |
| Maximum Power Consumption | 16 W |
| Power Save Mode | 0.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper |
| Auto EcoView | Yes |
| OSD Languages | English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish |
| Others | Screen Adjustment (Clock, Phase, Position, Range (Auto)), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Position, Adjustment Lock, Reset, DDC/CI Lock |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 346 x 349 x 157 mm |
| Dimensions (Without Stand, W x H x D) | 346 x 280 x 69 mm |
| Net Weight | 4.7 kg |
| Net Weight (Without Stand) | 3.4 kg |
| Height Adjustment Range | - |
| Tilt | 30° Up, 0° Down |
| Swivel | - |
| Pivot | - |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35 °C |
| Operating Humidity (R.H., non condensing) | 20 - 80 % |
| Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, EAC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m) , D-Sub mini 15 pin (1.8 m) |
| Others | AC power cord (2 m), Screw for VESA mount x4 (S1503-AF), setup guide |
| Warranty | Five Years |
| Dimension Drawing |
- 2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
Brochures
 |
FlexScan Series
|
|
|
FlexScan S1503-A
|
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| S1503-A User's manual | English | 1.58 MB |  |
| S1503-A Setup guide | English Chinese-Simplified Chinese-Traditional French German Japanese Russian |
7.1 MB | |
| EV2785 / EV2430 / S1703-A / S1503-A / LIMITED WARRANTY | English Chinese-Simplified Chinese-Traditional French German Russian |
602 KB | |
| S1503-A User's manual | Chinese-Simplified | 2.03 MB | |
| S1503-A User's manual | Chinese-Traditional | 2.03 MB | |
| S1503-A User's manual | French | 1.62 MB | |
| S1503-A User's manual | German | 1.59 MB | |
| S1503-A User's manual | Russian | 1.6 MB | |
