Centralized Quality Control over a Network

ColorNavigator Network provides centralized quality control (QC) of ColorEdge monitors for studios, printing houses, and other enterprises with multiple creators and editors who work on shared projects. With NetAgent or ColorNavigator 7 installed on the workstation, administrators can manage multiple ColorEdge monitors via web browser enabling quality control even from remote locations.

ColorNavigator Network also supports ColorNavigator NX.

Streamlined Quality Control

Conventional QC management requires monitors to be adjusted one by one – an extremely time-consuming process.

Manage Multiple Client Monitors

With ColorNavigator Network, an administrator can centrally manage the QC of multiple ColorEdge monitors. This reduces labor required for maintenance and ensures consistency between monitors.

Manage Monitors Remotely

ColorNavigator Network also enables easy QC management between studios at different locations. This allows control over settings and standards for specific projects or jobs, and ensures consistency as image and video data passes through each stage of production.

Main Features

ColorNavigator Network allows administrators to assign custom settings for connected monitors via the web browser. You can even assign based on specific projects or jobs to ensure appropriate standards are used throughout the production workflow.

Supported features may vary by model.

Set Color Modes

Select the color mode (Standard Mode / Advanced Mode) of the monitor, adjust the target values for Advanced Mode, set the brightness, white point, gamma, and color space for Standard Mode, and more. You can easily set all monitors to the same parameters at once, even when working remotely or collaborating with studios in other locations. This reduces overall time and effort needed for monitor quality control maintenance.

Carry Out Self-Calibration with Built-In Sensors

Carry out calibration remotely through ColorNavigator Network when managing a ColorEdge CG series monitor with built-in calibration sensor. In addition, you can schedule the monitor to automatically recalibrate at a specific time or at regular intervals. This ensures monitors stay color-accurate and saves the creator or editor from needing to maintain their monitor's settings themselves.

Key Lock Management

Lock the OSD to prevent unintended changes to the monitor's settings, such as color mode or brightness.

Client Software for Remote Color Management

NetAgent is a client software that runs in the background and allows administrators to carry out color management remotely. It does not have a user interface so creators and editors do not need to worry about operating the software.

Download NetAgent.

Monitor Status and Asset Management

Check the status of connected monitors and register asset information through ColorNavigator Network, including usage time, color mode settings, last calibration date and time, etc. In addition, unique asset information such as the connected PC and user name can also be registered for each monitor.

Worry-Free Web Hosting

ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (https://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

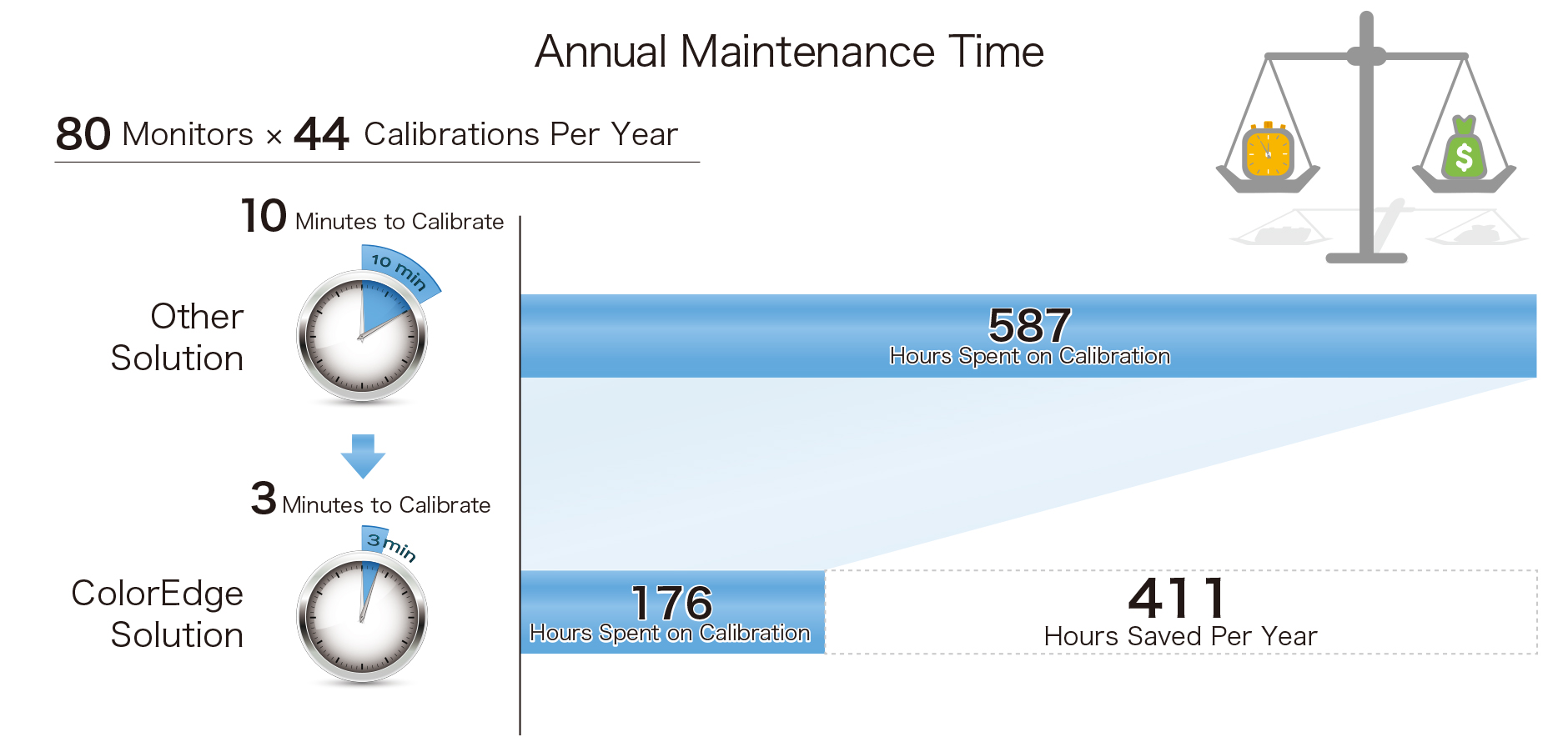

Save Time and Labor

ColorNavigator Network helps save hundreds of hours in annual maintenance associated with regular color management upkeep. Using an actual example from one of the world’s most prominent production studios, 411 hours are saved per year by using the solution.

Results will vary by installation environment.

Support and Availability

ColorNavigator Network is supported by ColorEdge CG and CS series monitors. See a full list of supported models here.

CG3146 is not supported.

Remote calibration is not available for CX/CS series monitors, as they do not have built-in calibration sensors. When setting the adjustment target through ColorNavigator Network, users will need to attach an external sensor to the monitor and calibrate using ColorNavigator 7 software.


Contact the EIZO group company or distributor in your country to inquire about ColorNavigator Network.

Manuals

Languages

English

Document	Language	Size	Download
ColorNavigator Network Ver.1.1.4 User's manual	English	2.16 MB

Compatibility
