Product Name 4K
27.0" Color LCD Monitor
Premium 4K for Business
Down to the Last Detail
The generous 27-inch screen  features 4K resolution for exceptional detail and clarity. With its sleek, frameless design and USB Type-C connectivity, the EV2740X provides streamlined viewing and operation to modern business professional.
  • Contact EIZO
  • AR Visualization
2 items


  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

FlexScan EV3240X / EV2740X special page



Tackle More with 4K

Work Effectively on a Wide 4K Screen

The monitor supports 4K (3840 x 2160 pixel) resolution, displaying four times the amount of information than standard Full HD (1920 x 1080 pixel) , and more than two times the amount than WQHD (2560 x 1440 pixel) monitors. With 4K, you can display more applications simultaneously on a 27-inch single screen, greatly reducing the need to scroll or switch windows frequently. 4K pict

Work Effectively on a Wide 4K Screen

Text, Icons and Images in Crisp Detail

The 27-inch monitor has a pixel density of 163 ppi, which is almost twice the number of concentrated pixels compared to a Full HD monitor of similar size. This high pixel density ensures even the smallest text and icons are displayed in crisp detail. 4K pict

Text, Icons, and Images in Crisp Detail








Get Connected. Get Started.

The monitor features a USB Type-C® connectivity that allows you display video, playback audio, transmit USB signals, supply power to connected PCs, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working remotely.

USB Type-C equipped PCs and monitor compatibility

Get Connected. Get Started.



Power Delivery

The 94 watt power delivery via USB Type-C reliably charges laptops or small desktop PCs. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

Power Delivery



Stable Network Connection

While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct online conference calls or data transfers reliably and at high speed.
LAN image

EIZO MAC Address Clone Utility software temporarily assigns the MAC address of a connected PC to the monitor, granting network access to authenticated devices, and preventing network access from unauthenticated devices.

Read more about EIZO MAC Address Clone Utility

Stable Network Connection



Directly Connect Peripherals

While many modern laptops are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a laptops to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or web camera.

Directly Connect Peripherals






Care for the Environment and You

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Read more about Sustainable Monitor

Care for the Environment and You



Conserve to Preserve

EV2740X is made of more than 80% recycled plastic. This cuts down on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving our natural ecosystems.

  Conserve to Preserve



Cushioning Environmental Impact

FlexScan Sustainable Monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The monitors are safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in paper instead of plastic bags.

Cushioning Environmental Impaact



Collective Environmental Consciousness

EIZO offers corporate customers an option for collective packaging, where multiple monitors can be packed together in a single box. We can also leave out any unneeded stands or cables. This reduces the amount of packaging materials used, improves loading efficiency, and significantly reduces unpacking and installation time, leading to less overall waste.

Collective Environmental Consciousness



Effortlessly Save on Power Consumption

The Auto EcoView function automatically adjusts the screen’s brightness according to changes in the ambient lighting. The EcoView Optimizer 2 function fine-tunes the balance between brightness and gain according to the content displayed on the screen. These proprietary EcoView technologies cut power consumption by as much as 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

Reduce Power Consumption



Certified Sustainable

The monitor is certified by worldwide comprehensive sustainability standards including TCO Certified Generation 9 and EnergyStar. Furthermore, the monitor earned the highest rating of “Gold” by EPEAT (Electronic Product Environmental Assessment Tool). Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.   TCO Certified GenerationEnergyStarEPEAT






A Better Working Experience

Workstyles are becoming more diverse with trends in open-plan offices, where employees do not have fixed desk assignments and use the workspace areas interchangeably, BYOD (bring your own device) meeting rooms where participants connect their own laptops, and telecommuting or working from home. The monitor offers features to enhance productivity in these environments, as well as provide comfort and convenience.

A Better Working Experience



Make the Most of Your Meetings

The monitor’s Picture-by-Picture (PbyP) capability helps to streamline your presentations and save valuable meeting time by removing the need to switch input sources. This convenient function makes it possible to compare data with a coworker side-by-side, as well as share information from multiple sources during presentations.



Versatile Stand for Optimal Positioning

The stand has a wide adjustment range, featuring height adjustment, tilt, swivel, and rotation for portrait mode. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Versatile Stand for Optimal Positioning


Space-Saving Positioning

A laptop can fit comfortably under the monitor with the stand set to its maximum height of 195 mm. This allows you to take advantage of a compact, multi-screen configuration without taking up valuable desk space.

Space-Saving Positioning


Connectivity and Flexibility

The monitor is equipped with USB Type-C, DisplayPort, and HDMI® video inputs. This is useful in hotdesking environments or shared workspaces where a range of devices are frequently connected.

In addition to the headphone jack, inherited from the previous models, an audio  line-out terminal for connecting preferred amplifier speaker is also equipped.

Connectivity and Flexibility






Attractive Minimalistic Design

The monitor debuts EIZO's next generation minimalistic design that fits into any workstyle environment seamlessly. The stand is designed with an open-sided curve that leaves valuable desk space open in front of the user. The slim rear cabinet implements contours around the back for an unimposing presence. Furthermore, the monitor features the virtually frameless bezels that characterize the modern FlexScan lineup for a seamless viewing experience.

Attractive Minimalistic Design


Integrated Features with a Nuanced Appearance

The monitor's power and setting control switches are designed to fit comfortably on the front bezel without imposing on the frameless design. In addition, high-quality 2-watt speakers, which traditionally require excess physical space to implement, are integrated directly inside the cabinet while maintaining a subtle appearance.

Bezels that are Barely There

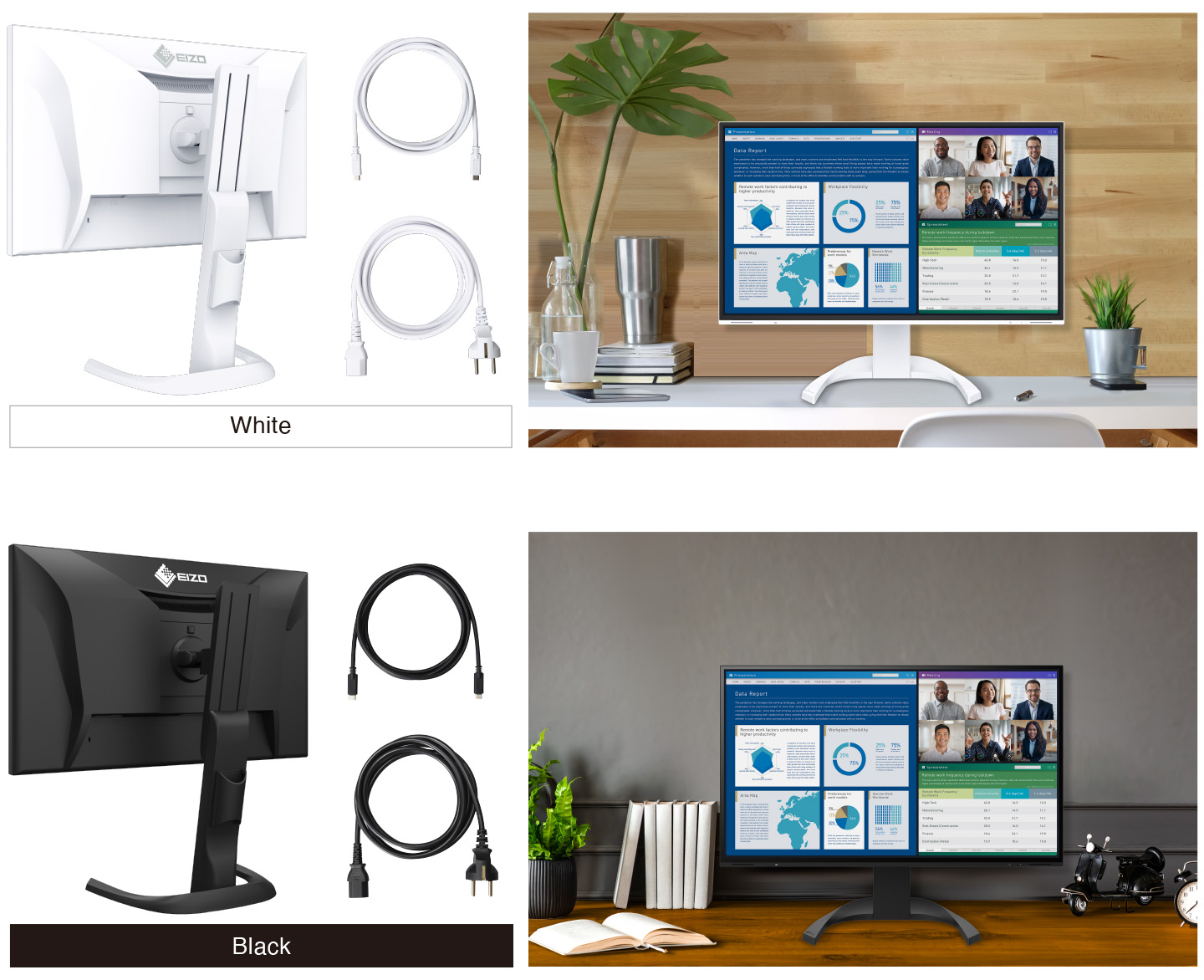

Color Coordination

Monitor cabinet is available in white or black and the aesthetically-pleasing design of the monitor extends to the stand and the cables. You can choose white for offices with a bright and gentle atmosphere, and black for offices with a chic and relaxed atmosphere.

Color Coordination

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome
  • White

  • Black

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the QR code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome

Free Up Your Workspace with a Stand Bracket

VESA-compliant stand bracket let you easily mount a client terminal such as a thin client or mini PC to the back of the monitor. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.

Read more about stand bracket

  PCSK-04

Free Up Your Workspace with a Stand Bracket








Say Goodbye to Tired Eyes

The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Say Goodbye to Tired Eyes


Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles

Reduce Blue Light by 80%

Printing work-related documents is becoming less common due to the increase in home offices, telecommuting, and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.


Reduce Blue Light by 80%

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Minimum Brightness of 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.


Anti-Glare Coating

Read more about how to combat eye fatigue




Intelligent Software to Work Better

EIZO’s Screen InStyle is a free software that allows you to easily manage monitor settings such as power, color, brightness and gamma by using your mouse instead of monitor control buttons.

Learn more about Screen InStyle



Screen InStyle




Organize Your Desktop to Increase Work Efficiency

EIZO's free Screen InStyle software's Screen Layout function allows you to divide the desktop and arrange each program's window neatly across the screen to help you work smart and efficiently.

See more with video

Organize Your Desktop to Increase Work Efficiency

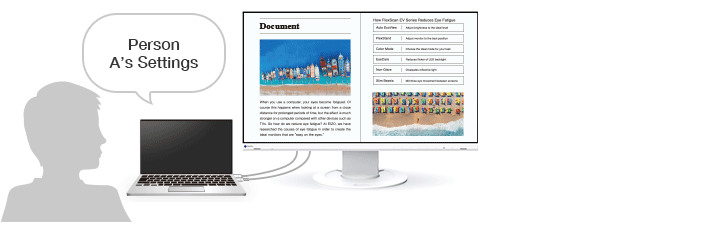

Take Your Settings with You

EIZO's Screen InStyle software's Color Briefcase function allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. This is useful in environments with hot-desking or shared workspaces, providing enhanced comfort and work efficiency.

Take Your Settings with You






Commitment to Quality

EIZO manufacturers its products at its own facilities to allow close control over production quality and ensure each monitor is built to last.

Commitment to Quality



Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality-control tested in-house at EIZO's own factory to ensure every product is built to last.

Auto Brightness Control

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.


Refreshing White with Frameless Design Refreshing White with Frameless Design





Zero Bright Pixels

EIZO guarantees this product will be free from bright sub-pixels for six months from purchase date.

See our Bright Pixel Policy for details.

Zero bright policy


5-Year Warranty

FlexScan monitors are backed by a standard 5-year manufacturer's  warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.

* Usage time is limited to 30,000 hours.








Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations EV2740X-BK: with FlexStand, black
EV2740X-WT: with FlexStand, white
EV2740X-FBK: without stand, black
EV2740X-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 27.0" (68.5 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch (H x V) 0.155 x 0.155 mm
Pixel Density 163 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 2000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) x 2
Digital Scanning Frequency (H / V) USB Type-C: 31 - 134 kHz / 29 - 61 Hz
DisplayPort: 31 - 134 kHz / 29 - 61 Hz
HDMI: 31 - 135 kHz / 29 - 61 Hz
USB
Upstream USB 5Gbps: Type-B,
USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
Downstream USB 5Gbps: Type-A x 3,
USB 5Gbps: Type-C (Type-C Current, 15 W max.)
USB LAN Adapter RJ-45 (1000BASE-T)
Windows 11, Windows 10 (64-bit, 32-bit), macOS Sierra (10.12) or later
Audio
Speakers 2.0 W + 2.0 W
Input Terminals USB Type-C, DisplayPort, HDMI x 2
Output Terminals Headphones (Stereo mini jack), Line out (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 16 W
Maximum Power Consumption 186 W
Power Save Mode 0.35 W
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Simultaneous Display Picture by Picture (2 PbyP)
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 611.6 x 370.8 - 565.4 x 242 - 250.1 mm
Dimensions (Without Stand, W x H x D) 611.6 x 358.8 x 60.5 mm
Net Weight 8.2 kg
Net Weight (Without Stand) 5.5 kg
Height Adjustment Range 195 mm
Tilt 35° Up, 5° Down
Swivel 90°
Pivot 90° (clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 9, EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (1.5 m)
Others AC power cord (2 m), setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
