FlexScan FLT
23.8" Color LCD Monitor
EIZO's most eco-conscious monitor with a typical power consumption of just 6W.

  • Contact EIZO
2 items

Compare

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

FlexScan FLT special page

FlexScan FLT Special page

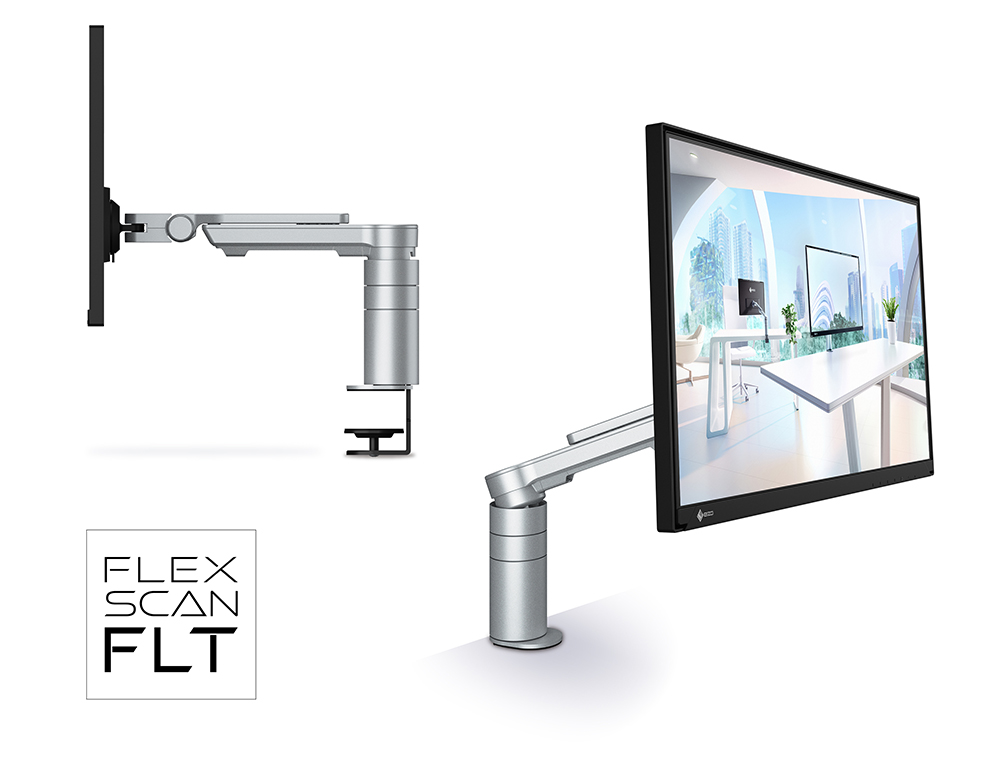

Model Variations FLT-BK: with arm, black
FLT-FBK: without arm, black

Note: Arm is removable
Panel
Type IPS
Backlight LED
Size 23.8" (60.5 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 527 x 296.5 mm
Pixel Pitch (H x V) 0.275 x 0.275 mm
Pixel Density 93 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3)
Digital Scanning Frequency (H / V) USB Type-C: 31 - 68 kHz / 59 - 61 Hz
USB
Upstream USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.)
Downstream USB 5Gbps: Type-C (Type-C Current, 15 W max.)
Audio
Input Terminals USB Type-C
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 6 W
Maximum Power Consumption 94 W
Power Save Mode 0.27 W
Features & Functions
Preset Modes User1, User2, sRGB, Eco, Paper, Movie, DICOM
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 550.2 x 398.2 x 359.6 - 439.6 mm (clamp part not included)
Dimensions (Without Stand, W x H x D) 550.2 x 327.8 x 24.4 mm
Net Weight 4.5 kg
Net Weight (Without Stand) 2.4 kg
Height Adjustment Range Refer to the dimension drawing
Tilt Refer to the dimension drawing
Swivel Refer to the dimension drawing
Hole Spacing (VESA Standard) 100 x 100 mm (VESA mounting bracket is needed)
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (1.5 m)
Others FLT: AC power cord (2 m), AC adapter, setup guide

FLT-F: AC power cord (2 m), AC adapter, VESA mounting bracket, VESA mounting screw x 4, setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
  3. 16  EPEAT registration varies by country. Please check https://www.epeat.net for registration status.
