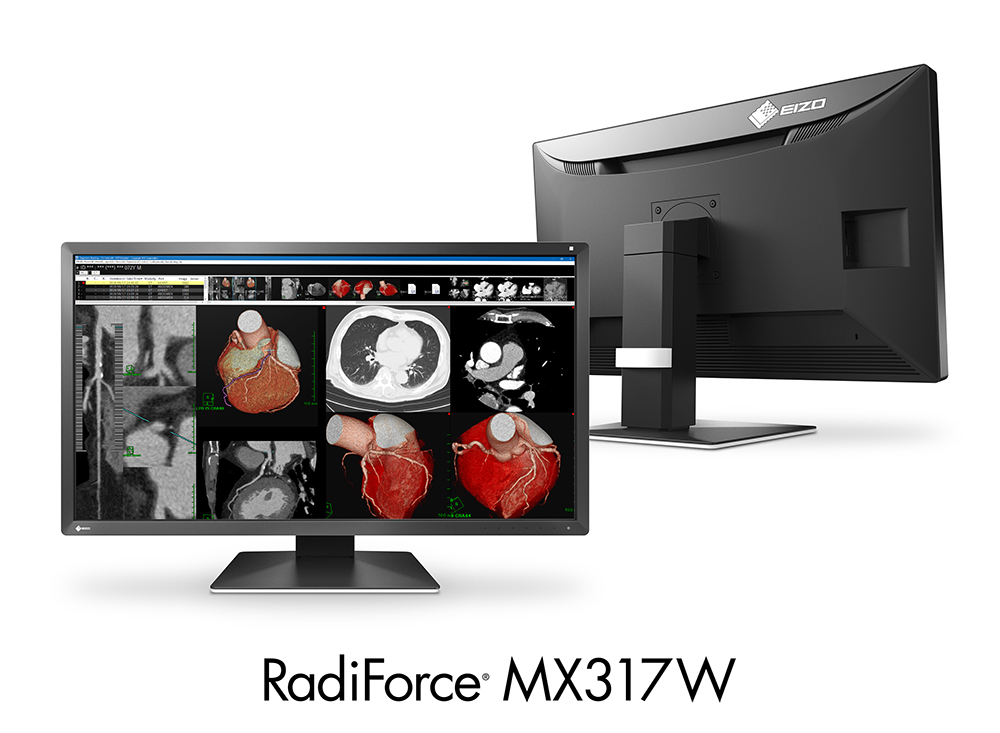

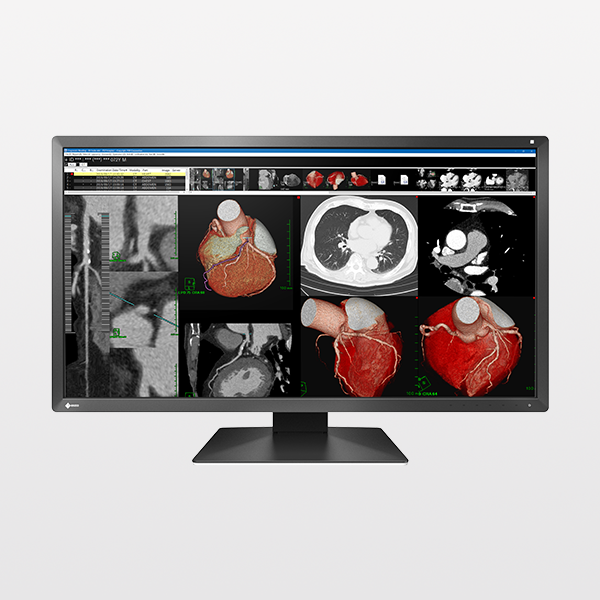

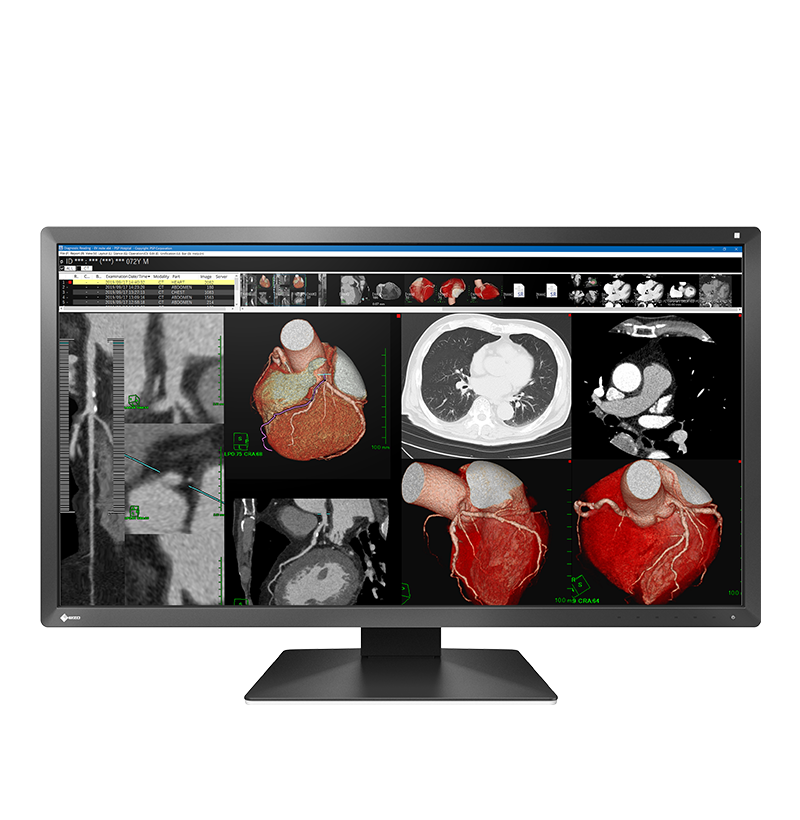

RadiForce MX317W
30.5" Color LCD Monitor
High-Definition Medical Monitor with USB Type-C Docking,
Comfort of Home Teleradiology.
  • Contact EIZO
  • AR Visualization
2 items


  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories

Streamlined Connection with USB Type-C

The monitor features a USB Type-C® connectivity that allows you display video, transmit USB signals, supply power to connected mobile workstations, and even transmit a network signal.  Furthermore, multi-screen setup can easily be established with simple daisy chain connection. This convenient multi-purpose connectivity makes it faster and easier to connect your mobile workstation when working remotely or at home.

Streamlined Connection with USB Type-C

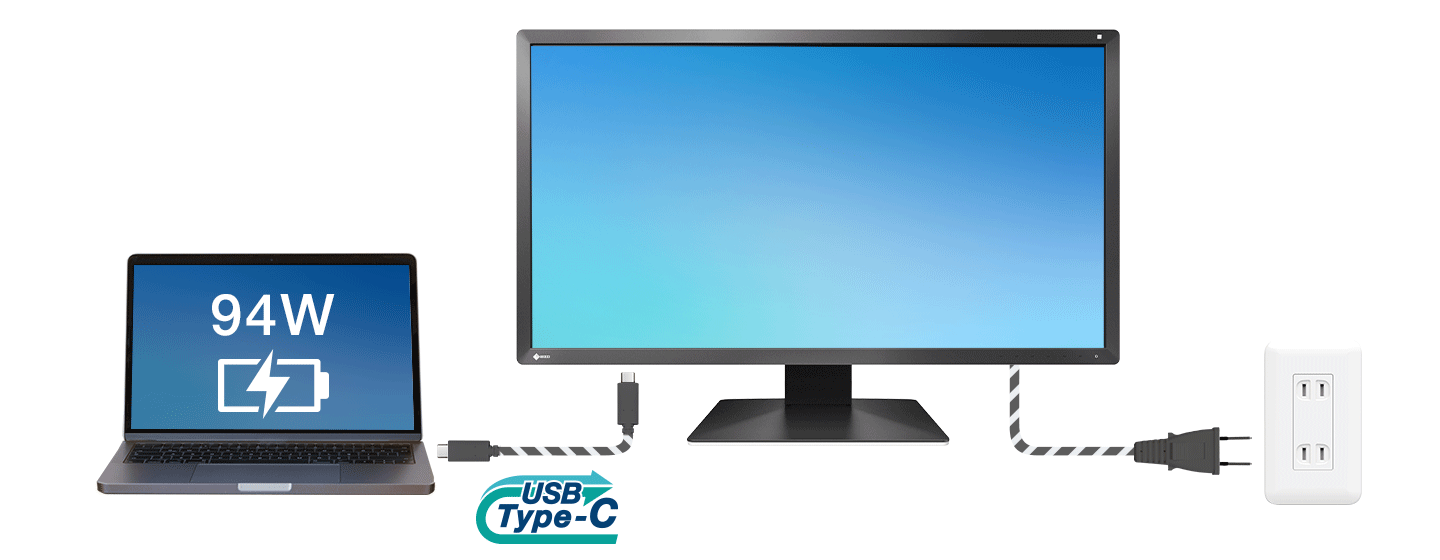

Mobile Workstation Power Delivery

The 94 watt power delivery via USB Type-C reliably charges mobile workstations. This eliminates the need for a mobile workstation's bulky power supply unit, freeing up space in your bag and on the desk.

Mobile Workstation Power Delivery

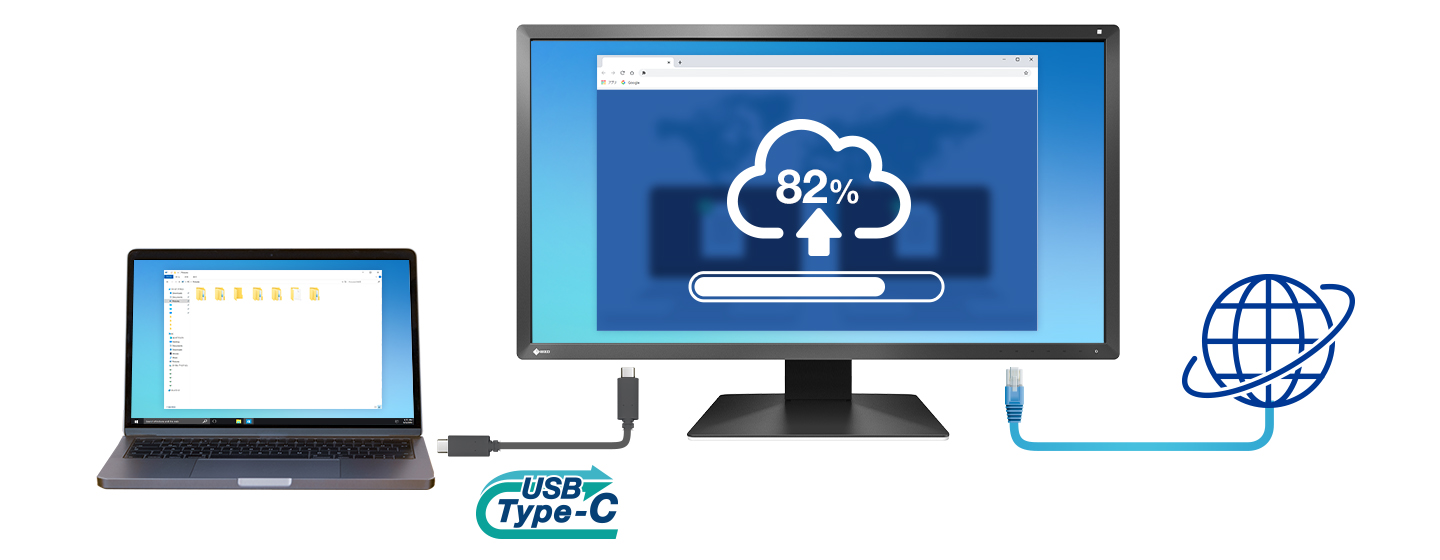

Stable Wired Network Connection

The monitor has LAN port directly built in for a stable wired connection. Connecting mobile workstation via USB Type-C allows access to the network through the monitor, making it useful when security policies require a wired connection.

Stable Wired Network Connection

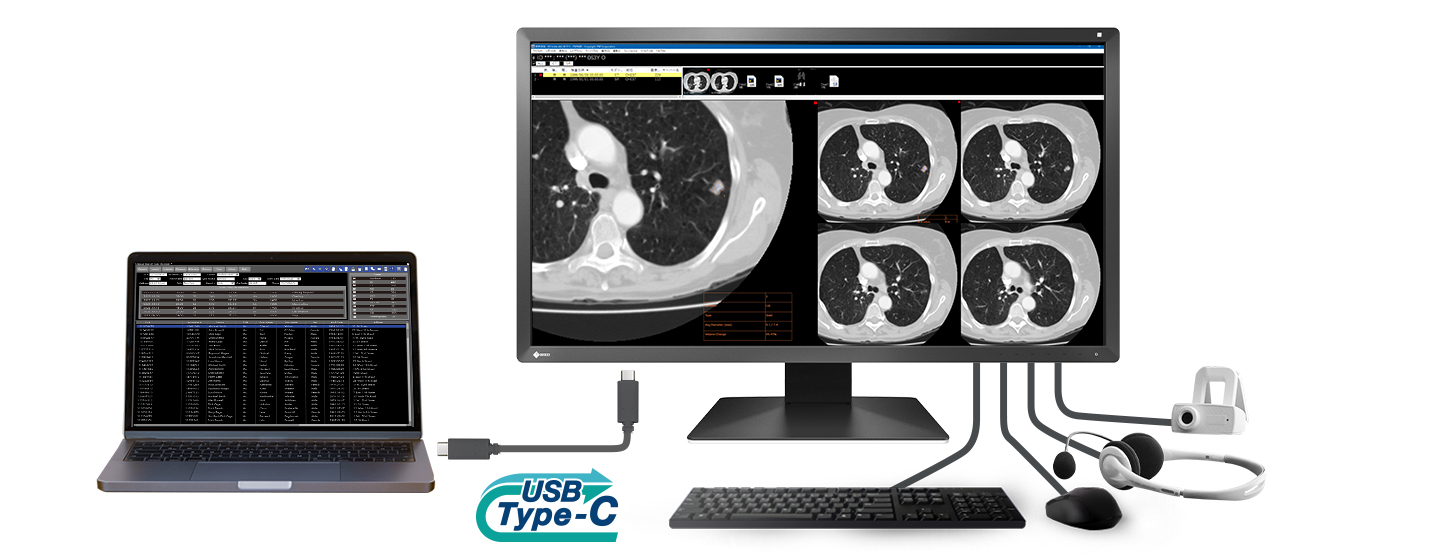

Directly Connect Peripherals

While many modern mobile workstations are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a mobile workstation to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or headset.

The USB Type-C port cannot be used as a USB external device connection when used for daisy-chain connection.

Directly Connect Peripherals

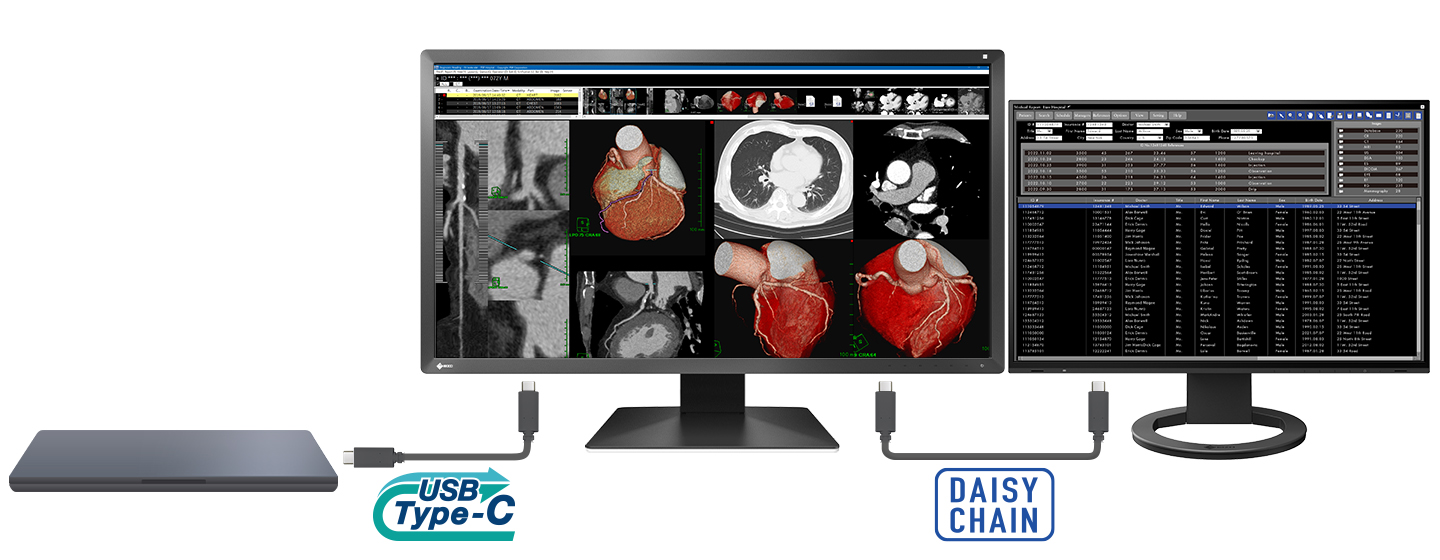

Hassle-Free Multi-Monitor Setup

The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single USB Type-C video signal output of mobile workstations. This allows you to configure a multi-monitor setup without hassle of excess cabling.

A multi-monitor configuration lets you display multiple screens simultaneously, such as reports, examination lists, and patient charts. This reduces the need to switch windows frequently or scroll compared to the small screen of a mobile workstation, facilitating a boost in efficiency.

RadiForce Monitor Using USB Type-C Daisy Chain Compatibility

Hassle-Free Multi-Monitor Setup




Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome
  • MX317W

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the QR code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome

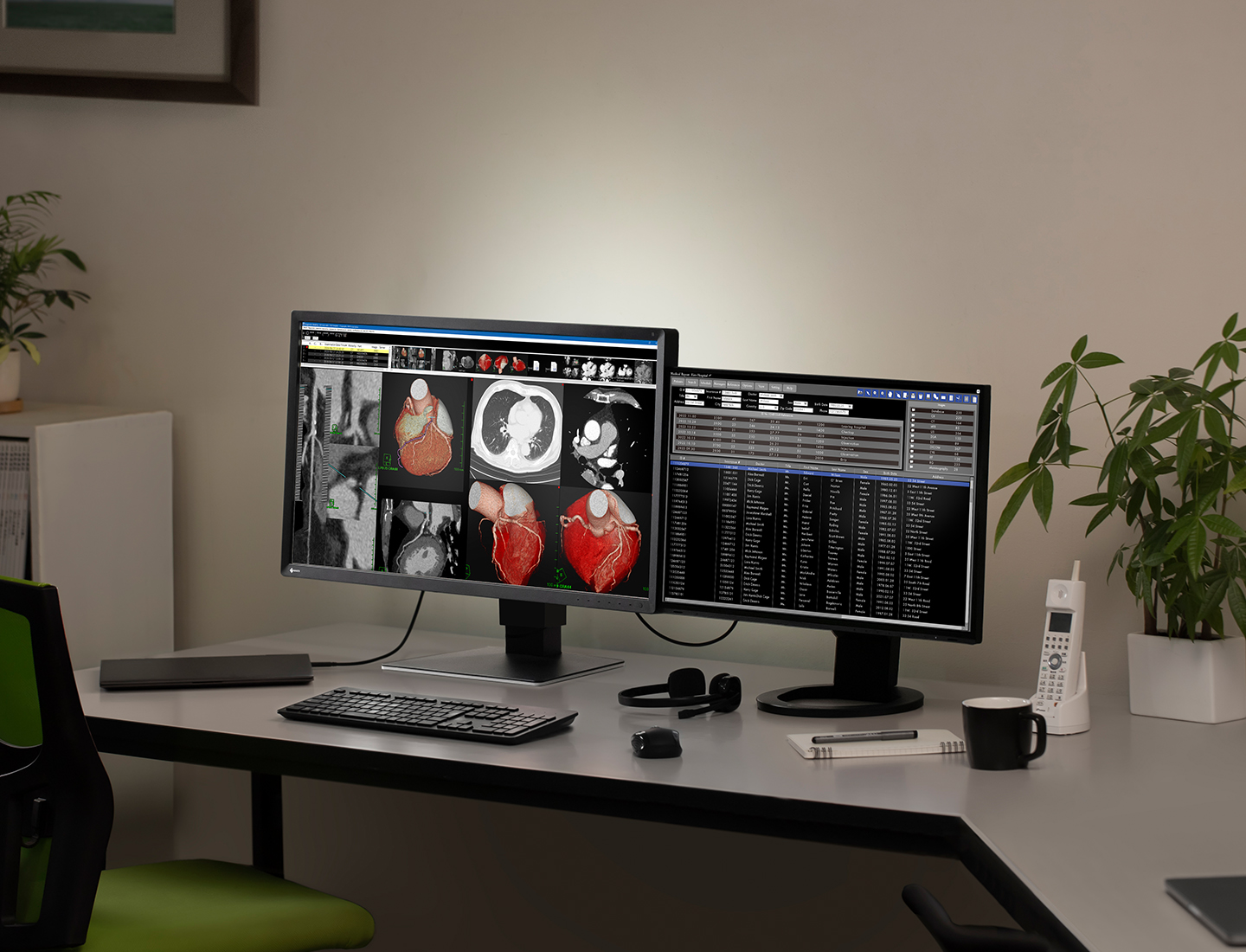

High Fidelity Images for Peace of Mind

30.5-inch 8 megapixel resolution medical monitor with DICOM® Part 14 calibration for reviewing diagnostic imaging such as chest X-ray, CT, or endoscopy accurately.

Streamlined Connection with USB Type-C



Enhanced Workflow with 8MP Resolution

The 30.5-inch large widescreen can display 8 megapixels of information. In medical settings where multiple applications and windows are often displayed simultaneously, this allows for free layout on a single screen.

Improved Workflow with High Resolution

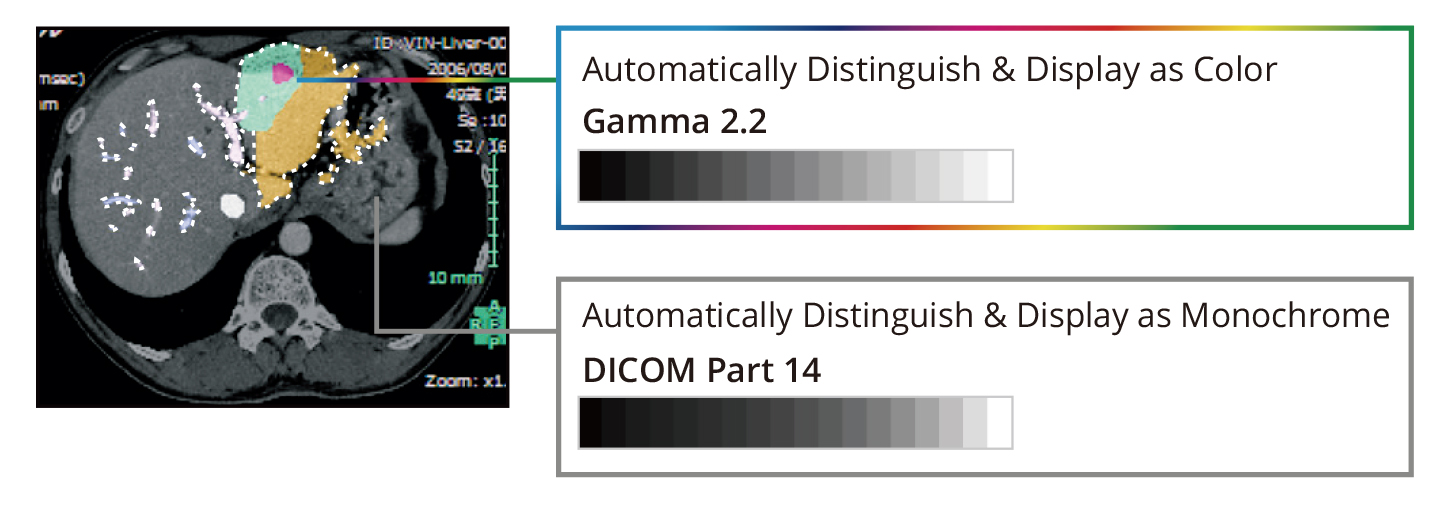

Hybrid Display of Monochrome and Color

Hybrid Display of Monochrome and ColorThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.

Hybrid Display of Monochrome and Color



Visual Assessment

The Kumamoto Chuo Hospital, Japan, conducted a visual assessment of the Hybrid Gamma PXL function included with RadiForce monitors. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.

See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF]

Visual Assessment



Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored . This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.497 cycles/mm) the MTF increases by over 50%.

Achieve Clarity True to the Source Data




Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Make the Precise Diagnosis

Select the Ideal Mode for Modalities

The Manual Mode Switch function allows you to choose various modes for different modalities such as CR, CT, endoscopy, and pathology. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.

See more with animation

Select the Ideal Mode for Modalities

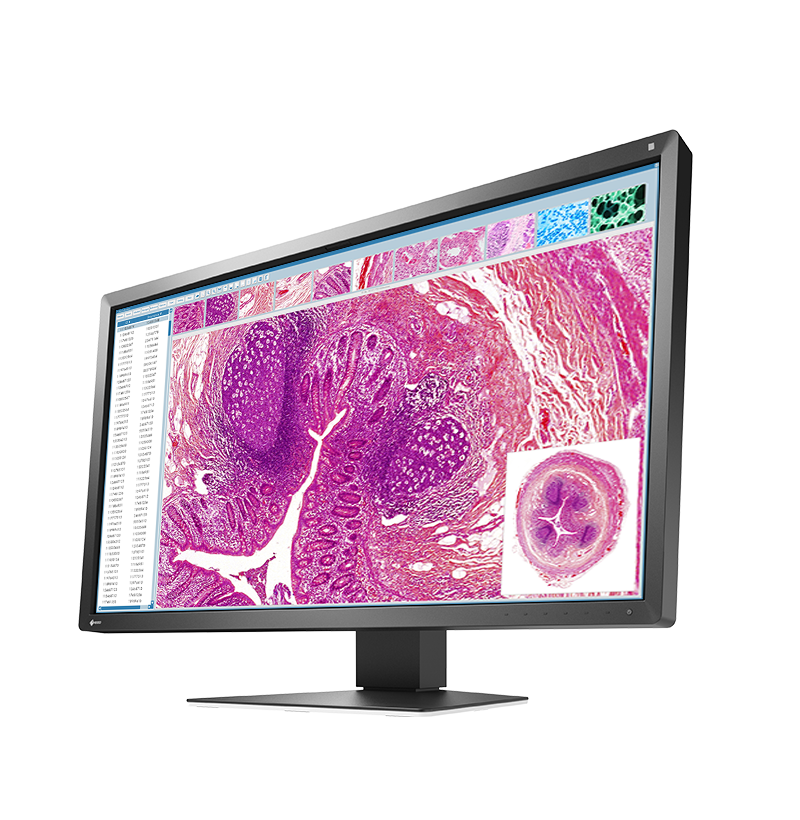

Preset Mode for Digital Pathology

The MX317W is the first in the RadiForce line to include a dedicated mode for pathology. This provides custom settings for viewing microscopic cell and tissue structures on the monitor in high detail.

This product has not received FDA 510 (k) clearance for Digital Pathology Display.

Mode for Digital Pathology






Rest Assured with Image Consistency

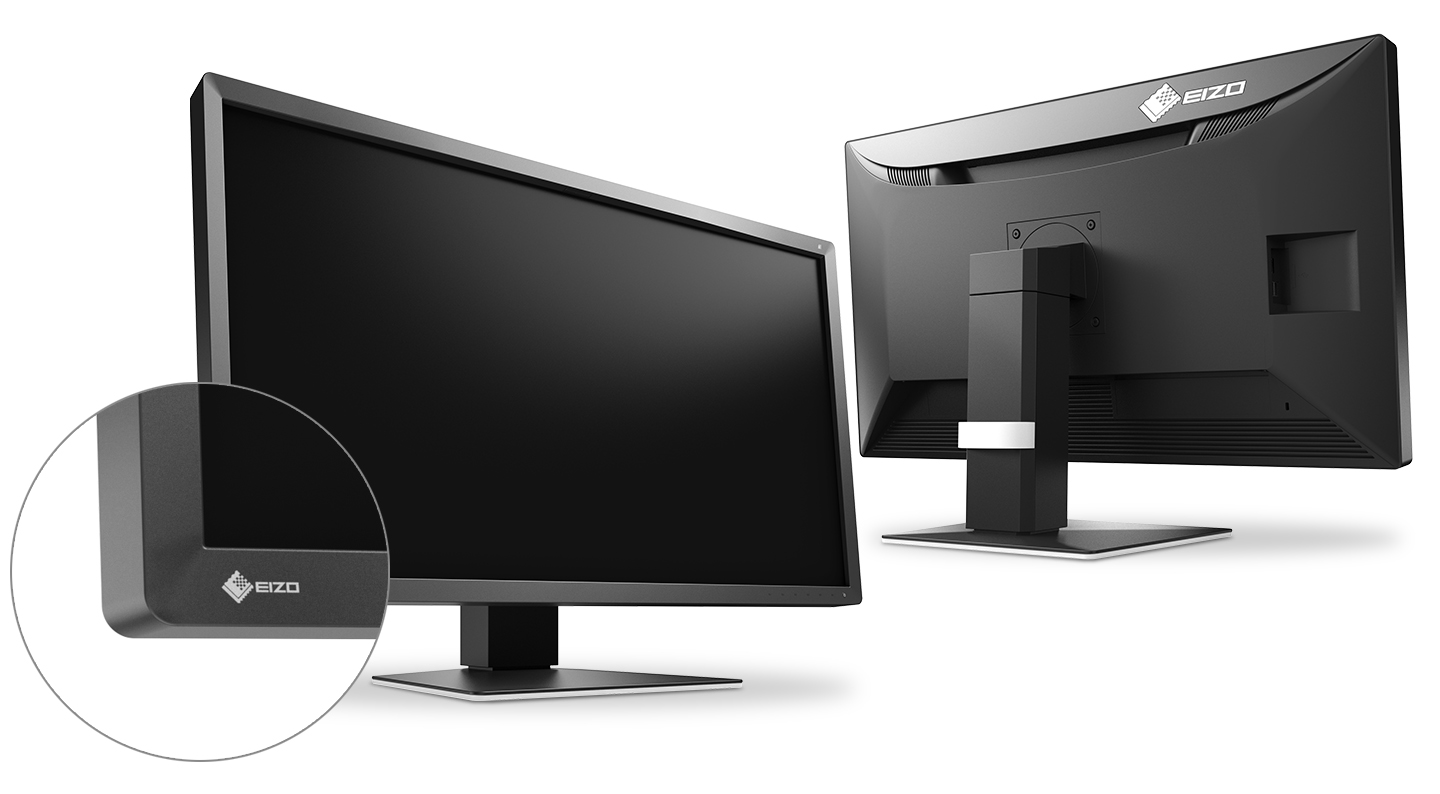

Elegant Curved Design

The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

Elegant Curved Design

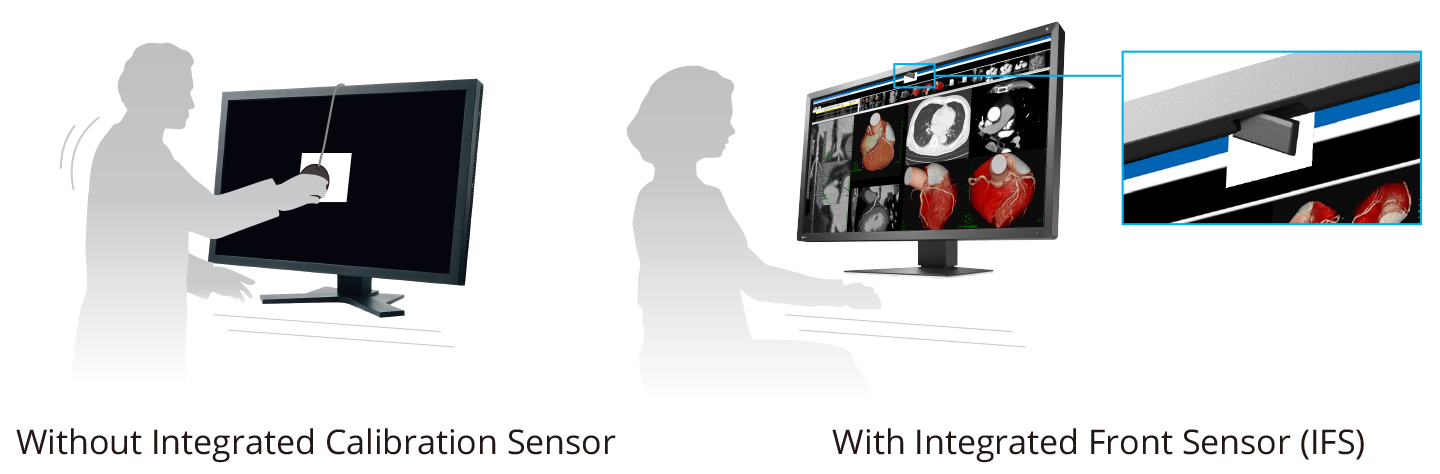

Maintain Image Quality Over Time

An monitor's color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor's display characteristics stay consistent.

With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce monitor and RadiCS LE software (included), you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.

Simple calibration using the monitor backlight sensor is also supported.

Maintain Image Quality Over Time



Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.



Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.






Care for the Environment

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. EIZO is committed carrying out responsible manufacturing practices to maintain high product quality, while keeping the environment in mind.

Care for the Environment

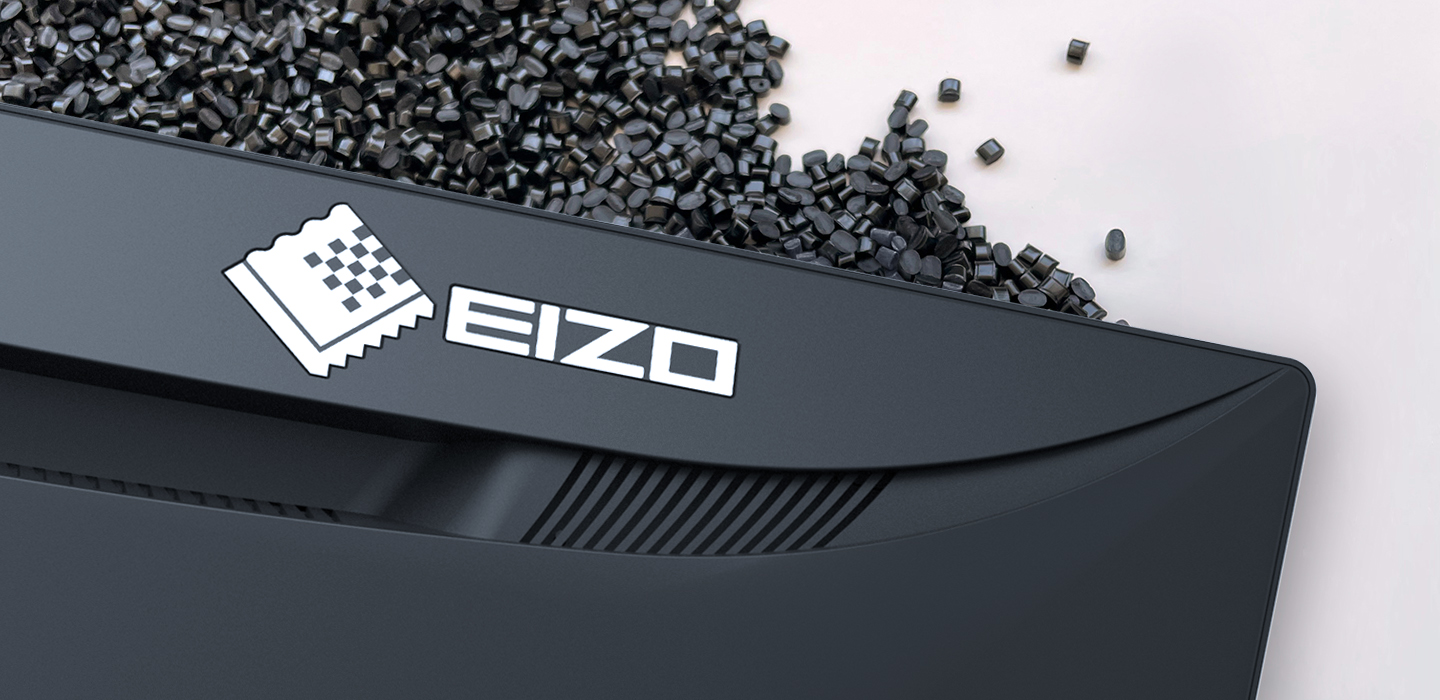

Conserve to Preserve

The MX317W is made of more than 70% recycled plastic. This mitigates on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving the natural ecosystems.

Conserve to Preserve

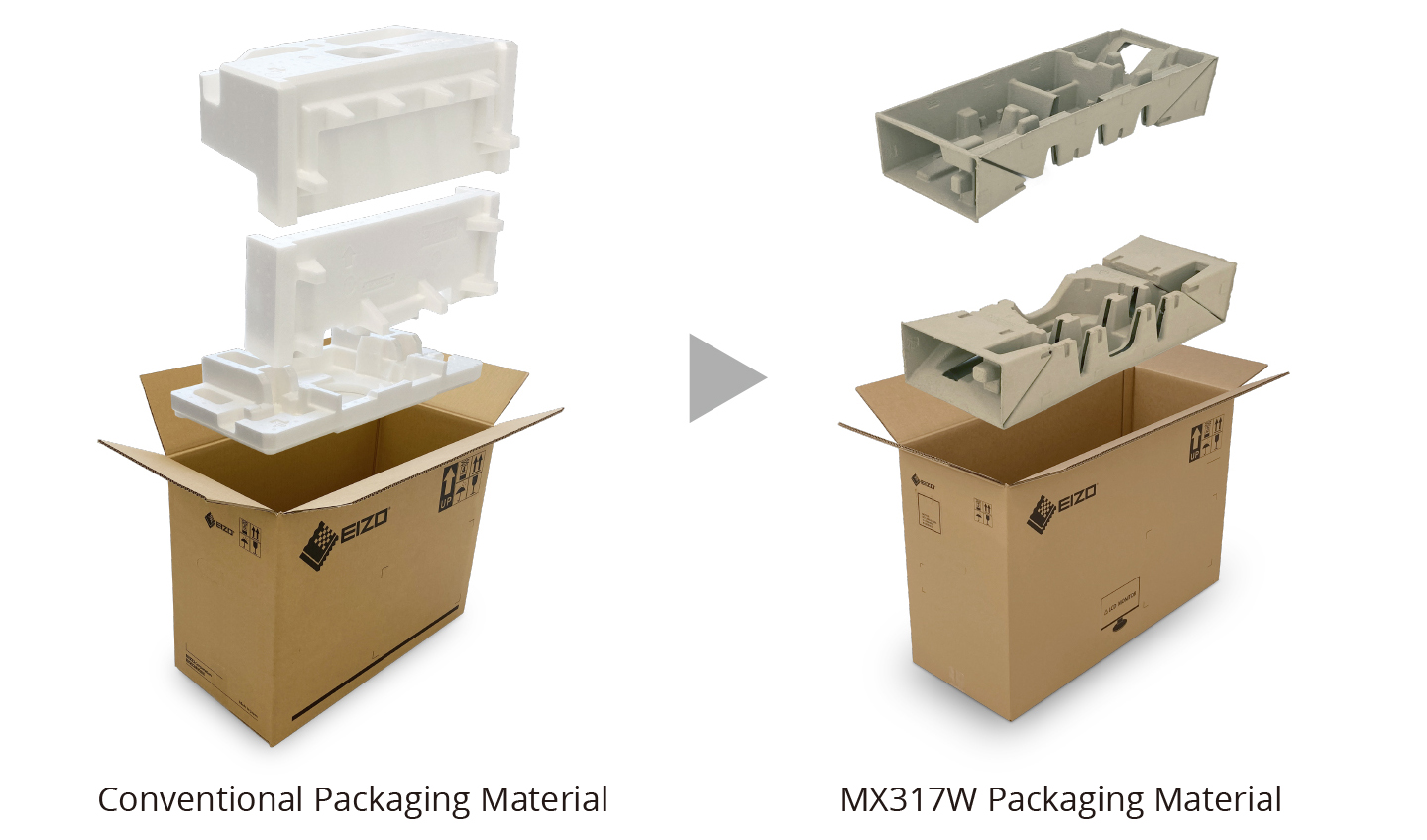

Cushioning Environmental Impact

The monitor uses molded pulp made from recycled cardboard and newspaper in its packaging instead of conventional recycled styrofoam or plastic, and cables are wrapped in paper instead of plastic bags.

Cushioning Environmental Impact

Molded pulp



We also implement  following  initiatives:

  • Use of halogen-free PCBs (printed circuit board)



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

SDGs 03SDGs 08

Environmentally Conscious
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations MX317W-BK: with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 30.5" (77.5 cm)
Native Resolution 4096 x 2160 (17:9 aspect ratio)
Viewable Image Size (H x V) 685.7 x 361.6 mm
Pixel Pitch (H x V) 0.1674 x 0.1674 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 550 cd/m2
Recommended Brightness for Calibration 270 cd/m2
Contrast Ratio (typical) 1800:1
Response Time (typical) 25 ms (black-white-black)
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode), DisplayPort x 2, HDMI
Output Terminals USB Type-C (daisy chain)
Digital Scanning Frequency (H / V) USB Type-C: 31 - 134 kHz / 59 - 61 Hz
DisplayPort: 31 - 134 kHz / 59 - 61 Hz
HDMI: 31 - 136 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B x 2,
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
Downstream USB 2.0: Type-A x 3
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 15 W max.)
USB LAN Adapter RJ-45 (1000BASE-T)
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 62 W
Maximum Power Consumption 260 W
Power Save Mode 0.5 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Hide-and-Seek, Switch-and-Go, Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL, Patho, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 12.4 kg
Net Weight (Without Stand) 8.2 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC
FDA Pending: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (1.5 m), DisplayPort (3 m) x 2, HDMI (3 m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF installation manual), instructions for use
Warranty 5 Years
Dimension Drawing PDF

Brochures

NEW
RadiForce general
14.4 MB

Download



RadiForce MX317W
3.86 MB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page*. If you have forgotten your User ID or Password, please send us an e-mail.

* This user registration form is a CRM web marketing tool provided by Tricorn Corporation called KREISEL. By clicking on the form, you will be forwarded to the KREISEL page.

Languages

MX317W Instructions for Use English 1 MB PDF
MX317W Instructions for Use German 1.01 MB PDF
MX317W Instructions for Use French 1.01 MB PDF
MX317W Instructions for Use Russian 1.03 MB PDF
MX317W Instructions for Use Italian 1 MB PDF
MX317W Instructions for Use Czech 1.01 MB PDF
MX317W Instructions for Use Swedish 1.02e+3 KB PDF
MX317W Instructions for Use Chinese-Simplified 1.47 MB PDF
MX317W Instructions for Use Chinese-Traditional 1.52 MB PDF
MX317W Instructions for Use Arabic 1.03 MB PDF
MX317W Instructions for Use Danish 1 MB PDF
MX317W Instructions for Use Dutch 1 MB PDF
MX317W Instructions for Use Finnish 1.02e+3 KB PDF
MX317W Instructions for Use Greek 1.03 MB PDF
MX317W Instructions for Use Korean 1.11 MB PDF
MX317W Instructions for Use Norwegian 1 MB PDF
MX317W Instructions for Use Polish 1.01 MB PDF
MX317W Instructions for Use Portuguese 1 MB PDF
MX317W Instructions for Use Spanish 1 MB PDF
MX317W Instructions for Use Turkish 1 MB PDF
MX317W Instructions for Use Estonian 1.02e+3 KB PDF
MX317W Instructions for Use Latvian 1 MB PDF
MX317W Instructions for Use Lithuanian 1 MB PDF
MX317W Instructions for Use Romanian 1 MB PDF
MX317W Instructions for Use Slovak 1.01 MB PDF
MX317W Instructions for Use Slovene 1.02e+3 KB PDF
MX317W Instructions for Use Hungarian 1.01 MB PDF
MX317W Instructions for Use Bulgarian 1.02 MB PDF
MX317W Instructions for Use Croatian 1 MB PDF
MX317W Installation Manual English 777 KB PDF
MX317W Installation Manual German 790 KB PDF
MX317W Installation Manual French 788 KB PDF
MX317W Installation Manual Russian 807 KB PDF
MX317W Installation Manual Chinese-Simplified 1.09 MB PDF
MX317W Installation Manual Chinese-Traditional 1.11 MB PDF
