Streamlined Modern Image Reading

The workload of various tasks involved in reading images has been increasing in recent years due to the diversification of image reading environments. RadiForce monitors provide a total solution that contributes to work efficiency in various scenes, such as quality control and connectivity options in addition to image quality.

Evolve Your Image Reading

As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow functions with the RadiForce monitor and bundled RadiCS LE software.

Boost Images for Easy Viewing

The Instant Backlight Booster function temporarily maxes the brightness of the monitor for quickly making detailed medical images easier to see. A single hotkey allows users to turn the function on for multiple monitors at once so they can easily view more than one screen under the same high-brightness conditions.

DICOM Part 14 is not supported while Instant Backlight Booster is on.

Instant Backlight Booster

See more with animation

Barrier-Free Workstyle

With the Switch-and-Go function, you can operate two different workstations at the same time with a single mouse and keyboard. Work across several monitors by moving the cursor from one screen to the other or switch the signals between workstations as needed without having to change your mouse or keyboard each time. This makes it possible to reduce the number of monitors in the workflow and improves work efficiency.

Switch-and-Go

See more with animation

Eye Relief with Gentle Light

RadiLight is an optional light that attaches to the back of a RadiForce monitor and illuminates the wall behind it. This reduces eye strain for the radiologist viewing a bright monitor in a dark environment, while ensuring there are no reflections on the screen to interfere with reading. It can be attached directly to the monitor without removing the stand and does not take up additional desk space.

High Fidelity Images for Peace of Mind

Display Both Monochrome and Color

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale.

As a result, monochrome images such as CR and DR are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as those used in endoscopy, nuclear medicine, 3D rendering, and fusion imaging are faithfully reproduced corresponding to Gamma 2.2. This improves the efficiency of viewing both monochrome and color images together on one screen.

Display Both Monochrome and Color

Visual Assessment

The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. Approximately a 37% improvement was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.

See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF]

Visual Assessment

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image that is true to the original source data safely on the monitor, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers details from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.182 cycles/mm) the MTF increases by approximately over 50%.

Sharpness Recovery

Make the Precise Diagnosis

EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.

Make the Precise Diagnosis

Convenient Connectivity for Comfortable Use

Hassle-Free Multi-Monitor Configuration

Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.

Compatibility between RadiForce monitors using DisplayPort daisy chains

Hassle-Free Multi-Monitor Configuration

Elegant Cabinet Design

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides and curves on the back present an elegant and clean aesthetic.

Elegant Cabinet Design

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models: iPhone 6s, iPad (5th generation or later)
Supported Browsers: Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models: ARCore supported Android devices
Supported Browser: Chrome

Scan the QR code using your smartphone or tablet to see how EIZO fits into your environment with augmented reality. Supported Models: iPhone 6s, iPad (5th generation or later), ARCore supported Android devices Supported Browsers: Safari, Chrome

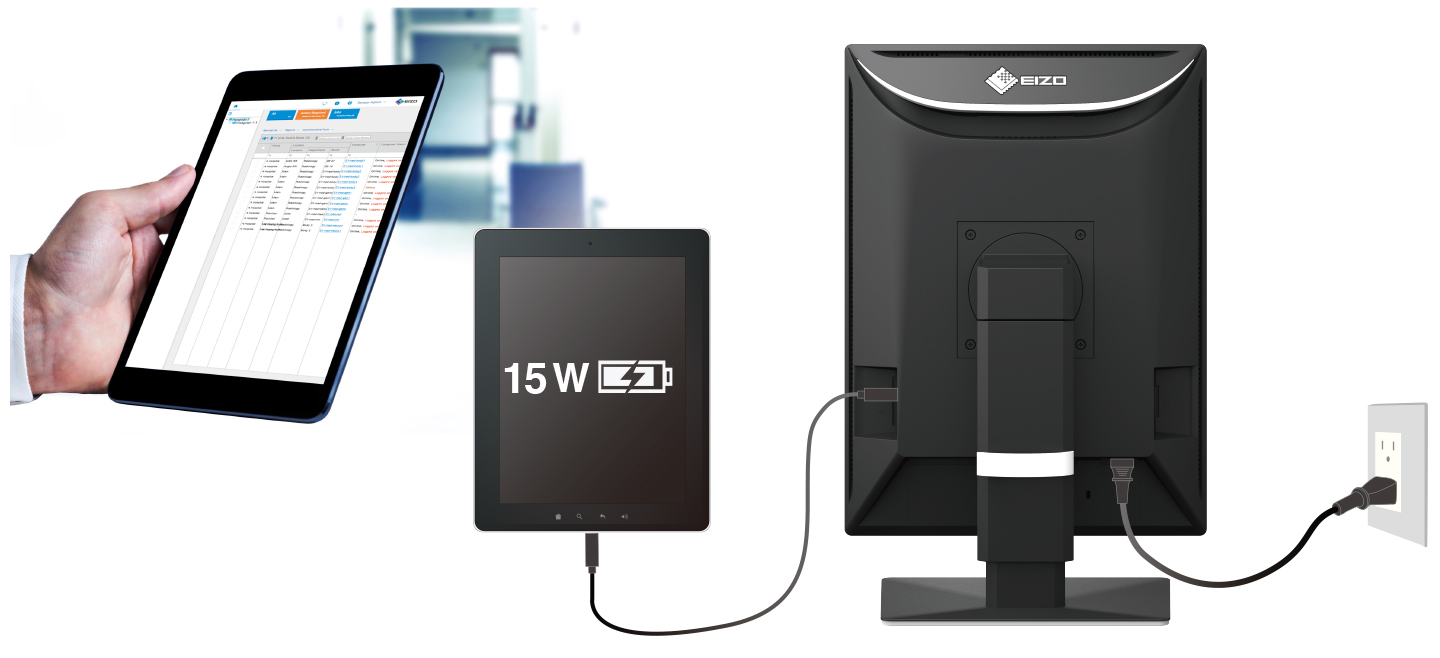

USB Hub and USB Type-C for Charging

The monitor is equipped with two USB Type-A downstream ports for connecting a mouse, keyboard, or other USB devices. It is also equipped with a USB Type-C port with up to 15 watt power supply for charging smartphones and tablets. The USB Type-C port does not allow the computer to access the device's memory or settings, so you can rest assured that it remains secure while connected.

USB Hub and USB Type-C for Charging

Rest Assured with Image Consistency

Maintain Image Quality Over Time

An LCD monitor's color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor's display characteristics stay consistent.

With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce monitor and RadiCS LE software (included) , you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.

Simple calibration using the monitor backlight sensor is also supported.

USB Hub and USB Type-C for Charging

Furthermore, EIZO offers RadiNET Pro Web Hosting, a cloud-based solution that enables quality control of connected monitors over the network. Since EIZO hosts the serve, this saves you the time and resources typically needed to setup and maintain a server.

Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year full warranty.

Responding to Social Issues

Eco-Friendly Product

We aim to continue responsible manufacturing practices to maintain high product quality, while keeping the environment in mind.

The RX370 is the first of EIZO products to use molded pulp in its packing material. Molded pulp is made from recycled cardboard and newspaper and has less of an impact on the environment when disposed of compared to conventional styrofoam or plastic.

RadiNET Pro Web Hosting

Molded pulp

We also implement following initiatives:

Partial use of halogen-free PCBs (printed circuit board)
Use of Non-phthalate cables and harnesses

Our Contribution to SDGs

As part of its corporate social responsibility (CSR) activities, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).

SDGs Logo

Supporting a Healthy Life

Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

Learn more

Environmentally Friendly

Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO₂ emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

Learn more

Read about our recent activities in our annual integrated report.

Panel
Type	Color (IPS)
Backlight	LED
Size	21.3" (54.1 cm)
Native Resolution	1536 x 2048 (3:4 aspect ratio)
Viewable Image Size (H x V)	324.9 x 433.2 mm
Pixel Pitch	0.2115 x 0.2115 mm
Display Colors	10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors 8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	1100 cd/m²
Recommended Brightness for Calibration	500 cd/m²
Contrast Ratio (typical)	1800:1
Response Time (typical)	25 ms (black-white-black)
Video Signals
Input Terminals	DisplayPort x 2, DVI-D (dual link)
Output Terminals	DisplayPort (daisy chain)
Digital Scanning Frequency (H / V)	31 - 127 kHz / 29 - 61.5 Hz
USB
Upstream	USB 2.0: Type-B x 2
Downstream	USB 2.0: Type-A x 2
Dedicated Charging Port	USB Type-C (Power Supply 15 W max.)
Power
Power Requirements	AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption	36 W
Maximum Power Consumption	105 W
Power Save Mode	1 W or less
Sensor	Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization	Yes
Digital Uniformity Equalizer	Yes
Hybrid Gamma PXL	Yes
Work-and-Flow	Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster
Preset Modes	CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages	English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight	8 kg
Net Weight (Without Stand)	5.2 kg
Hole Spacing (VESA Standard)	100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.)	CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA	510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS	Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables	DisplayPort (3 m) x 2
Others	AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use
Warranty	5 Years
Dimension Drawing	PDF
